Short Description
Main Specification
Arm Length (mm): 1200
Repeatability (mm): ±0.1
Loading Ability (kg): 15
Power Source (kVA): 4.08

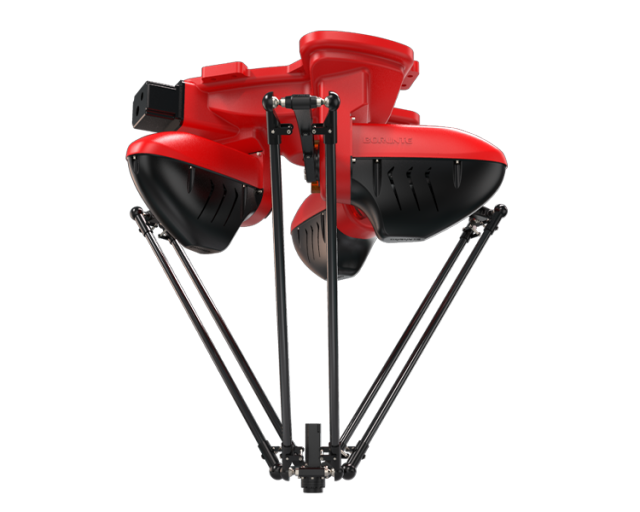

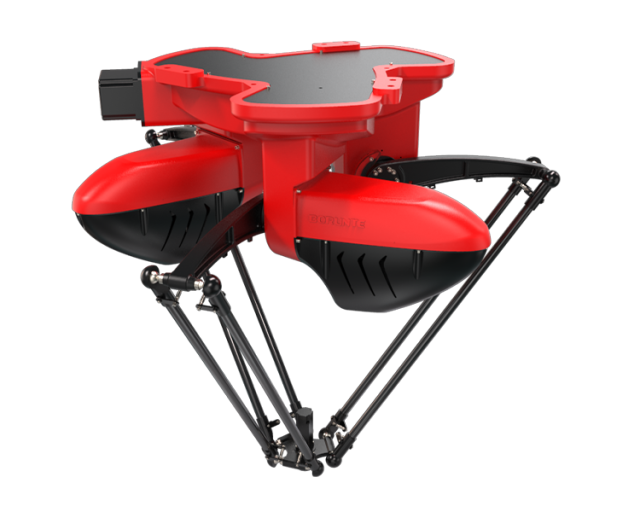

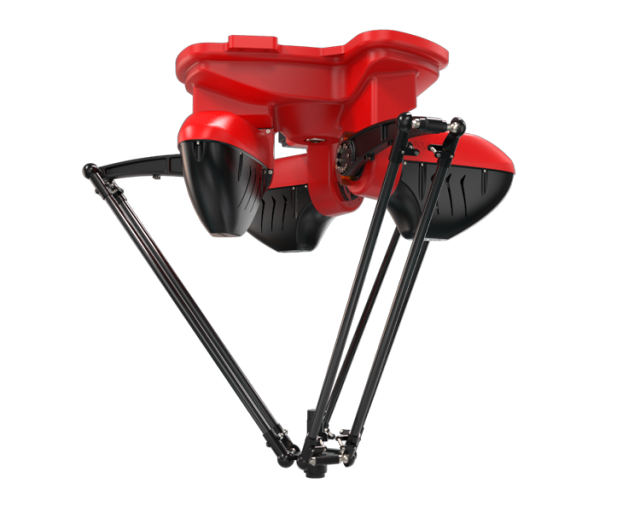

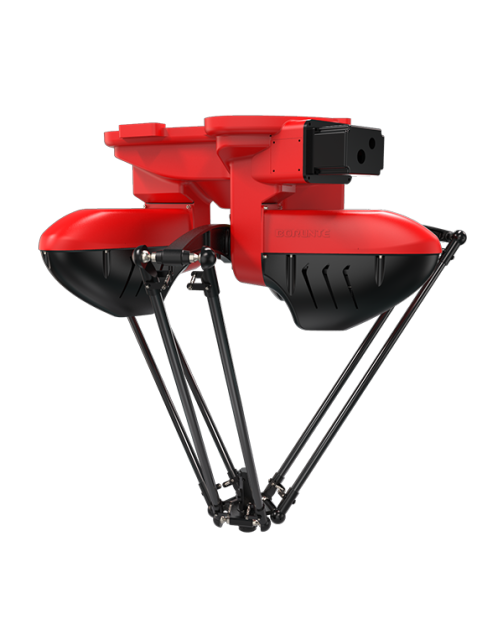

product is a four axis robot developed by BORUNTE for the assembly, sorting, and other application scenarios of scattered materials with medium to large loads. It can be paired with vision and has a 1200mm arm span, with a maximum load of 15kg. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication

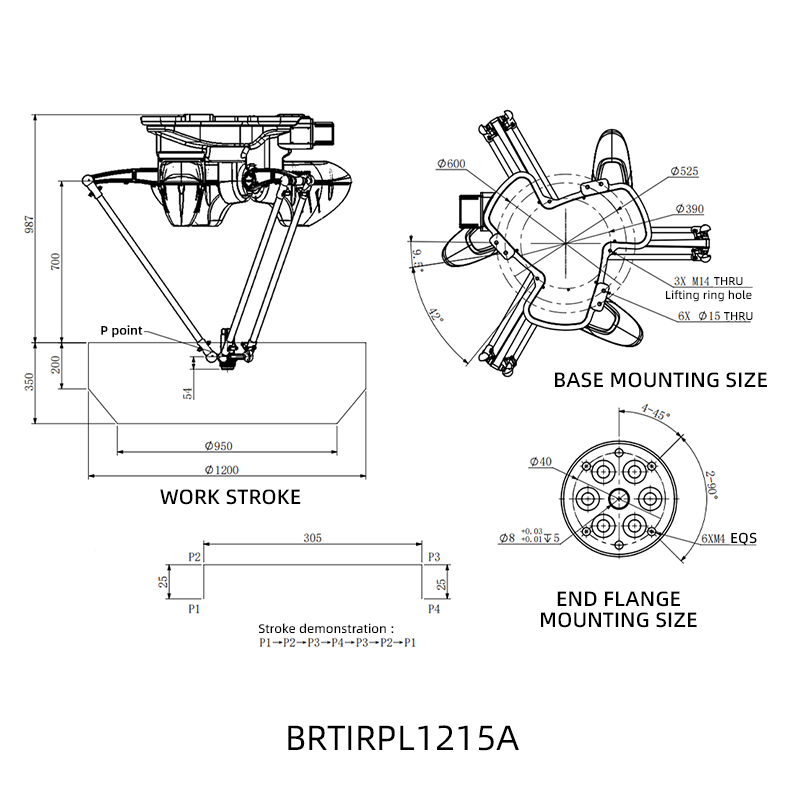

| Item | Range | Rhythm (time/min) | ||||
| Master Arm | Upper | 35° | stroke:25/305/25(mm) | |||
| Hem | 83° | 0kg | 5kg | 10kg | 15kg | |
| End | J4 | ±360° | 143time/min | 121time/min | 107time/min | 94time/min |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Targeted Automation Solution for Medium-Large Payload Handling
The product addresses the needs of manufacturers requiring reliable automation for assembly, sorting, and material handling involving medium to large loads. Developed by experienced robotic arm manufacturers, this 4-axis robot arm is suited for production lines demanding consistent accuracy and repeatability. Its compatibility with vision systems enables enhanced part alignment and offset correction, supporting engineering teams in sectors like automotive and electronics. The design serves engineers prioritizing robust throughput and integration flexibility within complex automation workflows.
Precise Technical Features to Maximize Performance
This 4-axis robot features a 1200 mm arm span capable of handling loads up to 15 kg, with a repeat positioning accuracy of ±0.1 mm, delivering consistent operational precision. The IP40-rated enclosure ensures protection against particulate matter typical in factory environments. Power consumption is efficiently maintained at 4.08 kVA. The rotational axis J4 offers continuous ±360° mobility to facilitate versatile end effector movement. These specifications reflect the focus of industrial robots manufacturers on high-performance, energy-conscious components designed for scalable, modular integration in manufacturing systems.
Real-World Industrial Applications and Integration Benefits
The product is optimized for assembly line operations, targeted testing workflows, and sorting processes within electronics, automotive components, and precision manufacturing industries. Its 4-axis robot architecture balances speed and load capability to maintain efficient cycle times crucial for high-demand production schedules. Integration with vision systems allows for automated quality inspections and dynamic alignment, increasing throughput and minimizing error rates. Overall, this solution acts as a reliable automation component reducing labor dependency and enhancing production consistency in demanding industrial environments.
Product Advantages
Innovative Structural and System Design Enhancements
The product embodies a thoughtfully engineered structure from leading robotic arm manufacturers that emphasizes modularity and adaptability. Its four-axis configuration optimizes the workspace while precisely managing medium to large payloads. The 1200 mm reach expands operational flexibility to accommodate diverse material handling layouts. IP40 protection caters to standard factory conditions, reducing maintenance and downtime. This compact design integrates seamlessly with broader automation systems, enabling manufacturers to upgrade or customize assembly lines without extensive reconfiguration, aligning with strategies of top industrial robots manufacturers.
Superior Performance and Usability for Industrial Efficiency
Operational efficiency is reinforced by the repeat positioning accuracy of ±0.1 mm, making the 4-axis robot ideal for tasks requiring high precision. Ease of integration with vision systems supports real-time corrections and improved product quality monitoring. The robot’s load capacity and reach allow use in varied applications, reducing the need for multiple specialized machines. These performance benefits translate to a significant return on investment through enhanced throughput and minimized defects, addressing the core priorities of engineers and procurement managers in manufacturing sectors seeking reliable robotic arm manufacturers.
Use Scenarios
Precision Assembly Testing in Electronics Manufacturing
In electronics manufacturing plants, the product serves as a critical element within quality control and assembly testing environments. Operating in controlled, detail-oriented settings, this 4-axis robot arm handles medium-weight components with consistent accuracy vital for fine-tuned assembly tasks. Its compatibility with vision systems facilitates precise alignment and defect detection, reinforcing compliance with industry quality standards. Integrated into automated workflows, it performs repetitive positioning and end effector testing, enabling streamlined calibration and optimizing process reliability for production engineers and automation specialists.
Material Sorting and System Calibration in Automotive Parts Production
Within the automotive parts industry, the product performs essential roles in sorting and system calibration operations where handling heavier components is required. Its 15 kg payload capacity and 1200 mm reach enable efficient management of large, scattered materials on sorting lines. The IP40 protection rating ensures dependable operation amid typical factory dust and particulate presence. By integrating with vision and calibration systems, the 4-axis robot enhances sorting accuracy and alignment adjustments, facilitating faster setup and reducing manual intervention. Such system integration improves overall plant throughput and supports rigorous quality assurance protocols crucial in automotive manufacturing.
FAQ
What industries benefit most from the product 4-axis robot?
Our product robot supports medium to large loads with a 15 kg payload and 1200 mm reach, ideal for industries requiring precise assembly, sorting, and material handling. As established industrial robots manufacturers, we focus on applications demanding reliability and repeatability in complex workflows.
Can you customize the product to fit specific production line layouts?
Yes, we offer customization options for the product, including flexible integration with vision systems and other automation components. Our experience as leading robotic arm manufacturers enables us to tailor solutions that meet your unique operational and spatial requirements.
What support do you provide for installation and maintenance of the product?
We provide detailed installation guidelines and offer technical support to ensure proper setup of your 4-axis robot arm. Our team assists with maintenance procedures and troubleshooting to maintain the product’s accuracy and operational reliability throughout its service life.
How do you ensure the accuracy and durability of the product robot arm?
Our product is engineered with a repeat positioning accuracy of ±0.1 mm and rated IP40 for basic environmental protection. As expert robotic arm manufacturers, we implement strict quality controls and utilize robust materials to ensure consistent performance under industrial conditions.
