Short Description
Main Specification
Arm Length (mm): 1000
Repeatability (mm): ±0.1
Loading Ability (kg): 3
Power Source (kVA): 3.18

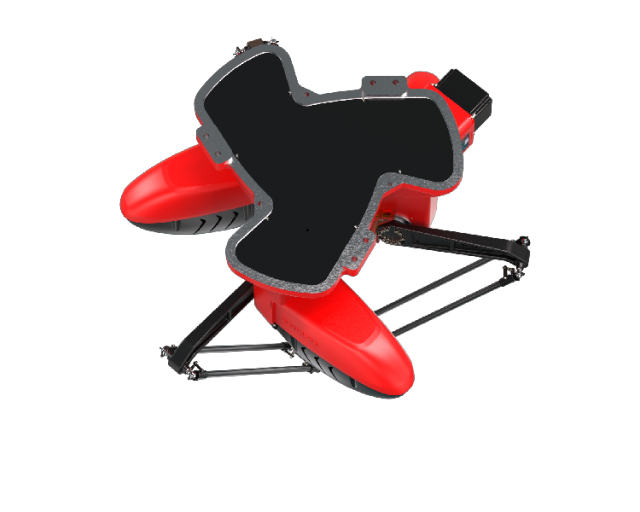

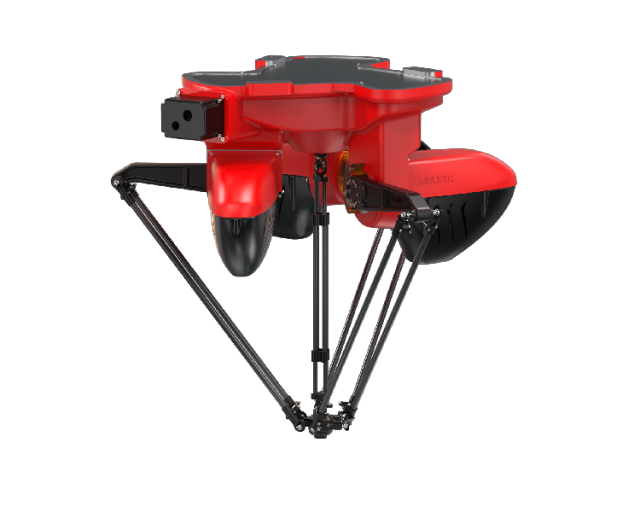

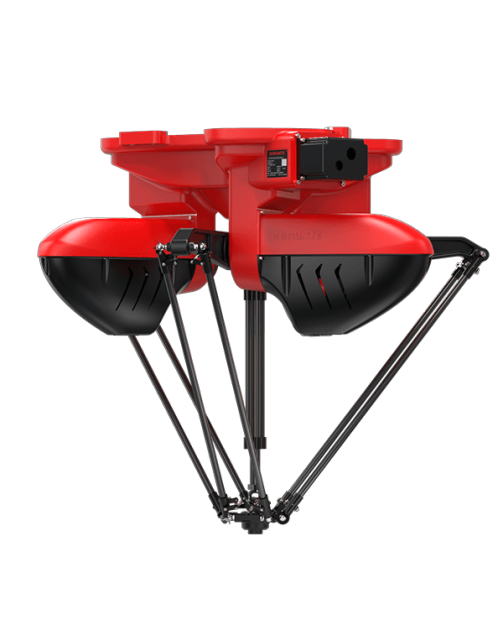

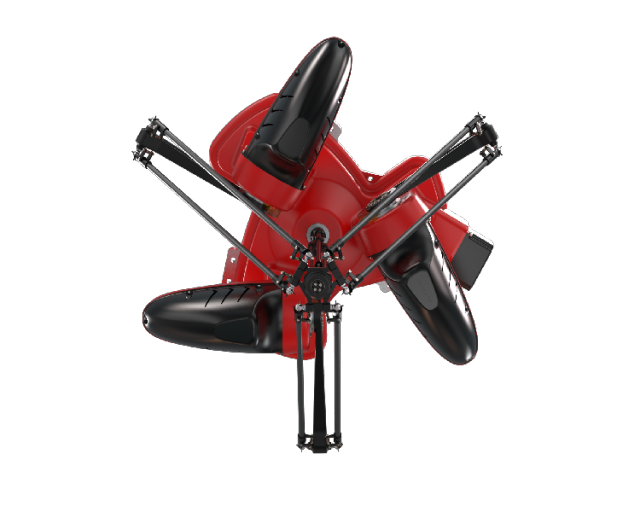

profuct type robot is a four-axis robot that developed by BORUNTE for assembly, sorting and other application scenarios of light, small and scattered materials. The maximum arm length is 1000mm and the maximum load is 3kg. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication
| Item | Range | Rhythm (time/min) | ||
| Master Arm | Upper | 46.7° | stroke：25/305/25（mm） | |
| Hem | 86.6° | |||
| End | J4 | ±360° | 150time/min | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Targeted Performance for Light Material Handling
The profuct delivers specialized automation for industries requiring manipulation of small, lightweight components. Designed by a reputable axis robot manufacturer, this 4 axis robot is suited for production lines, prototype development, and quality inspection tasks where precision and flexibility are paramount. Its compact footprint appeals to manufacturers needing seamless integration within limited spaces while enhancing throughput in pick-and-place and assembly operations. Organizations employing the profuct benefit from reliability in repetitive tasks involving scattered, delicate parts, making it a preferred solution among industrial robot manufacturers focused on light material handling.
Precision Mechanics and Technical Specifications
Equipped with a 4 axis robot arm extending up to 1000 mm and supporting payloads of up to 3 kg, this solution embodies precise repeatability with ±0.1 mm accuracy. The arm’s IP40-rated protection ensures durability in standard industrial environments, while a power rating of 3.18 kVA supports stable operation. Its mechanical configuration includes a stroke range of 25/305/25 mm and a full ±360° rotation at the end joint, delivering versatile motion capabilities. Such technical attributes enable easy system integration in automation cells. This 4 axis robot arm’s rhythmic cycle speed of 150 times per minute underscores its efficiency for continuous industrial processes.
Industry Applications and Operational Benefits
The profuct addresses a broad spectrum of applications including assembly of small components, sorting of lightweight parts, and precise positioning for prototyping or quality assurance procedures. Its adaptability makes it relevant for sectors such as electronics, consumer goods, and light manufacturing that require meticulous handling of parts where footprint and system repeatability are critical. Within operational workflows, this 4 axis robot functions as an automated extension of manual labor, ensuring consistent quality, reducing human error, and optimizing line productivity. By streamlining repetitive light-part tasks, it strengthens manufacturers’ ability to meet high-volume requirements without sacrificing precision.
Product Advantages
Structural and Design Advantages of the 4 Axis Robot
This 4 axis robot stands out for its compact and robust structural design developed by a distinguished axis robot manufacturer. The modularity of its 4 axis robot arm facilitates straightforward integration with existing automation platforms and enables flexible deployment in confined spaces. IP40 protection enhances mechanical durability against dust ingress in operational settings. The arm’s substantial 1000 mm reach combined with a 3 kg payload capacity provides a balanced solution for lightweight parts assembly while maintaining spatial efficiency. Its engineering emphasizes reliable repetitive motion with a considerable stroke range and full joint rotation, accommodating diverse operational demands typical for premium industrial robot manufacturers.
Operational Performance and Usability Benefits
From a user perspective, the profuct offers repeatable positioning accuracy of ±0.1 mm, crucial for ensuring quality in intricate assembly and sorting tasks. Its stable power consumption and rhythmic motion—able to cycle up to 150 times per minute—grant industrial operators throughput advantages while maintaining precision. The 4 axis robot arm’s ergonomic design supports rapid reconfiguration for varying task requirements, reducing downtime and enhancing operational flexibility. Furthermore, the ease of integration reduces engineering overhead, enabling faster system deployment. Such performance and usability features translate into increased return on investment for manufacturing facilities relying on consistent productivity and precise automation from trusted industrial robot manufacturers.
Use Scenarios
Assembly of Small Components in Electronics Manufacturing
In electronics production lines, the profuct fulfills a critical role in the assembly of compact circuit boards and peripheral components. Operating in a controlled industrial environment, this 4 axis robot arm handles lightweight parts with exacting accuracy, specifically designed to comply with stringent manufacturing tolerances. Its IP40 rating ensures protection against dust typical in electronics assembly areas, while its operational repeatability supports precise placement required for soldering or insertion tasks. Integration with existing conveyor and vision systems facilitates synchronized workflows, allowing manufacturers to boost efficiency, improve yield rates, and reduce manual intervention in small-component fabrication processes.
Sorting and Pick-and-Place Operations in Automated Packaging
The profuct is well-suited for sorting and pick-and-place applications within industrial packaging lines. Its compact 4 axis robot configuration enables installation in tight spaces commonly found in automated packaging cells. This robot arm’s capacity to handle up to 3 kg load with ±0.1 mm precision optimizes sorting accuracy and speed for lightweight products or parts. Compliance with industrial safety and operational standards ensures reliability over repetitive cycles. When integrated with packaging conveyor belts and inspection systems, it facilitates seamless part handling, reducing labor costs and improving packaging line throughput, a key contribution appreciated by industrial robot manufacturers targeting packaging and logistics sectors.
What is the maximum payload and arm length of the profuct 4 axis robot?
Our profuct features a maximum payload of 3 kg and an arm length of 1000 mm. This balance of reach and capacity is optimized for light parts handling. As a reliable 4 axis robot arm, it is designed for precise and repeatable motion in compact automation setups.
Can you customize the profuct robot to fit specific industrial requirements?
Yes, we offer customization options for the profuct. Please contact our sales team to discuss your technical needs and integration requirements. We aim to provide flexible solutions tailored to specific applications in your production line.
How do you support installation and integration of the profuct robot?
We provide detailed technical documentation and remote support for integrating the profuct into your existing automation cells. Our goal is to ensure smooth setup and reliable operation with minimal disruption in your factory environment.
What environments is the profuct suitable for, considering its protection rating?
The profuct is rated IP40, making it suitable for standard industrial environments with limited exposure to dust or moisture. This makes it ideal for precise small-part tasks in controlled factory settings. As experienced industrial robot manufacturers, we ensure our products comply with industry durability standards.
