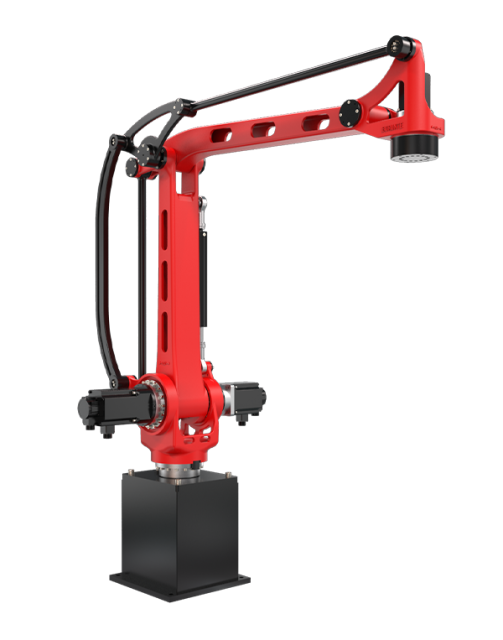

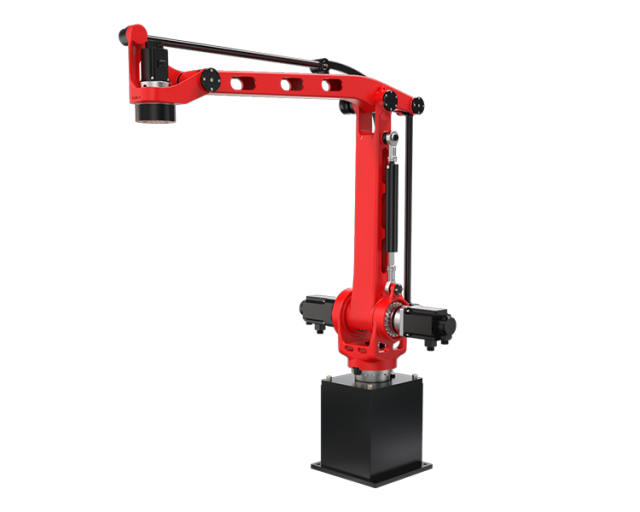

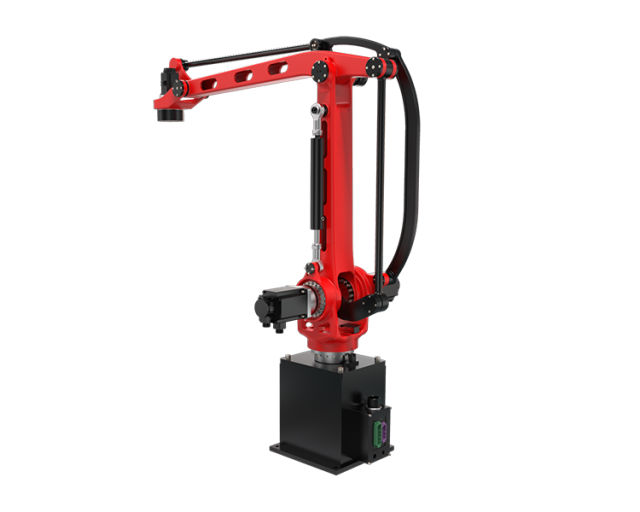

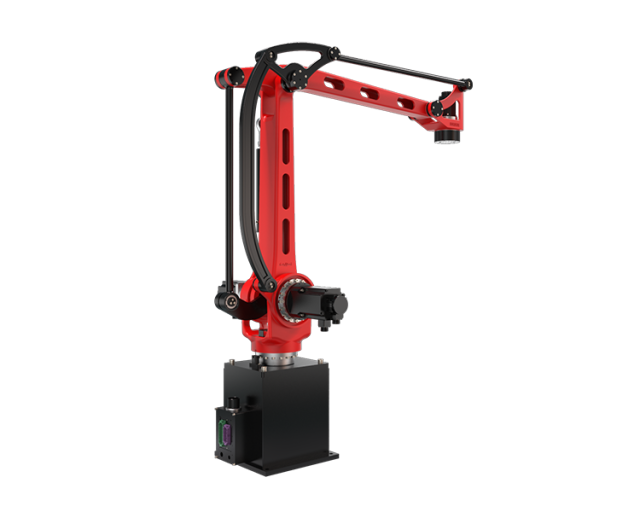

BRTIRPZ2035A is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term operations, as well as hazardous and harsh environments. It has an arm span of 2000mm and a maximum load of 35kg.
Short Description
BRTIRPZ2035A is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term operations, as well as hazardous and harsh environments. It has an arm span of 2000mm and a maximum load of 35kg.
Main Specification
Arm Length (mm): 2000
Repeatability (mm): ±0.1
Loading Ability (kg): 35
Power Source (kVA): 5.5
product is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term operations, as well as hazardous and harsh environments. It has an arm span of 2000mm and a maximum load of 35kg. With multiple degrees of flexibility, it can be used in loading and unloading, handling, unstacking, and stacking. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication
| Item | Range | Max.speed | |
| Arm | J1 | ±160° | 163°/s |
| J2 | -100°/+20° | 131°/s | |
| J3 | -60°/+57° | 177°/s | |
| Wrist | J4 | ±360° | 296°/s |
| R34 | 68°-198° | / | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Functional Versatility for Industrial Automation Professionals
Designed by experienced industrial robots manufacturers, the product targets manufacturing engineers and automation integrators requiring repetitive, long-duration robotic assistance. Its four-axis configuration supports fluid and precise motion necessary in continuous loading, unloading, stacking, and material handling tasks. This solution suits industries where consistent cycle times and high uptime are crucial, providing operators and system architects a reliable tool to reduce manual labor and increase throughput in aggressive operational environments without compromising stability.
Precision Engineering and Technical Capabilities
Equipped with a 2000 mm arm length and capable of handling up to 35 kg payload, this 4-axis robot offers repeat positioning accuracy at ±0.1 mm. The unit supports dynamic joint speeds (J1 max 163°/s, J4 max 296°/s) optimizing cycle times across tasks. Its IP40 protection rating ensures durability in harsh industrial environments, while a 5.5 kVA power requirement balances performance and energy efficiency. BORUNTE’s modular design allows straightforward maintenance and system integration, meeting rigorous industrial requirements typical for 4 axis robot arm deployments.
Industrial Integration and Application Impact
The product finds application in automated production lines requiring precise and repetitive handling, such as assembly, sorting, and palletizing. As part of a broader portfolio from seasoned robotic arm manufacturers, it enhances manufacturing workflows by improving speed consistency and operational reliability. Its capabilities facilitate compliance with production standards and enable seamless interface with existing control systems in sectors like electronics, automotive, and logistics, empowering facilities to elevate automation productivity and maintain competitiveness through scalable robotic solutions.
Product Advantages
Structural and Design Strengths of the Modular Robot
This 4 axis robot arm benefits from a thoughtfully engineered modular structure by leading robotic arm manufacturers, combining flexibility with rugged durability. The system’s IP40 protection supports tolerance against dust and particulate matter common in industrial settings. Its mechanical design affords extended reach and multifaceted motions, specifically optimizing for load/unload and stacking applications. The compact footprint and standard interfaces facilitate integration into existing automation cells, reducing complexity during deployment and maintenance while ensuring robust mechanical stability required for continuous operation.
Performance Benefits Tailored for Industrial Workflows
The product delivers consistent high-precision outcomes with ±0.1 mm repeatability, supporting quality control in repetitive tasks. Its dynamic joint speeds and payload capacity increase operational efficiency, allowing users to maximize throughput while reducing downtime. The intuitive system design from trusted industrial robots manufacturers makes programming and routine maintenance accessible to technical teams, promoting ease of use and minimizing labor costs. In demanding production environments, this solution enhances reliability and scalability, enabling industries to meet strict cycle time demands without sacrificing automation quality.
Automated Material Handling in Manufacturing Facilities
Within manufacturing settings such as electronics assembly or automotive component production, the product serves as an essential tool for repetitive loading and unloading tasks. Its 35 kg payload and precise four-axis motion optimize the transfer of parts between conveyors and processing stations. The unit’s IP40 rating ensures reliable operation amid dust and typical industrial conditions, while its integration capability supports existing robotic cells. This setup enables automated material flow, reduces manual intervention, and aligns with production line cadence for improved operational efficiency.
Role in High-Volume Stacking and Sorting Operations
In warehouse and packaging industries, the product optimizes stacking and unstacking tasks through its extended reach and controlled motion facilitated by this advanced 4 axis robot arm. It accurately positions goods to maximize space utilization and maintain product integrity during handling. By integrating with conveyor and sorting systems, the robot enhances sorting accuracy and speeds repetitive packaging lines. Its dependable repeatability and payload capacity conform with rigorous packaging standards, helping companies achieve consistent throughput while minimizing human labor in storage management environments.
What is the payload capacity and reach of the product 4-axis robot arm?
Our product features a payload of 35 kg and an arm reach of 2000 mm, providing robust handling for various industrial tasks. As experienced 4-axis robot manufacturers, we design this model to deliver precise and reliable performance in demanding environments.
Can the product be integrated into existing automated production lines?
Yes, the product is engineered for straightforward integration into automation cells. Our expertise as industrial robots manufacturers ensures compatibility with typical industrial setups, enabling efficient loading, unloading, and material handling workflows.
What level of protection does the product provide for harsh environments?
The product comes with an IP40 protection rating, which safeguards its mechanical and electrical components from solid particles and light industrial dust. This makes it suitable for consistent operation in moderately harsh industrial conditions.
What are the maintenance requirements for the product robotic arm?
We design the product with modular components to facilitate straightforward maintenance and long service life. Regular inspections and timely servicing help maintain the repeat positioning accuracy of ±0.1 mm and ensure continuous, efficient operation.
