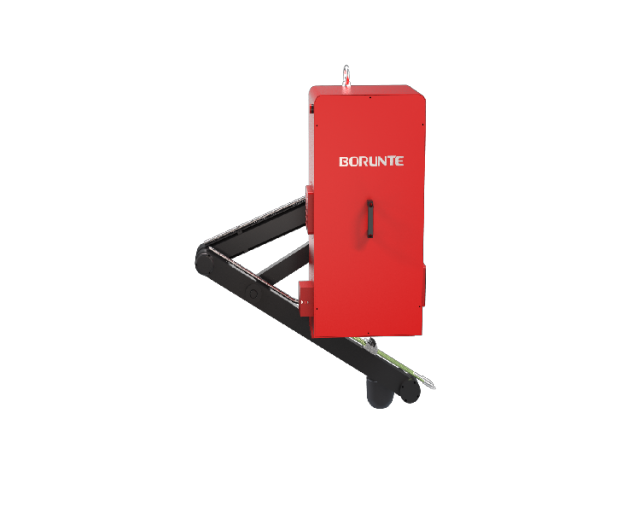

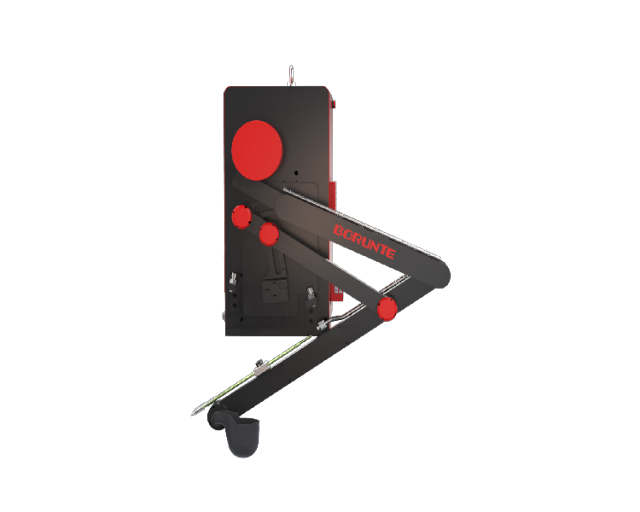

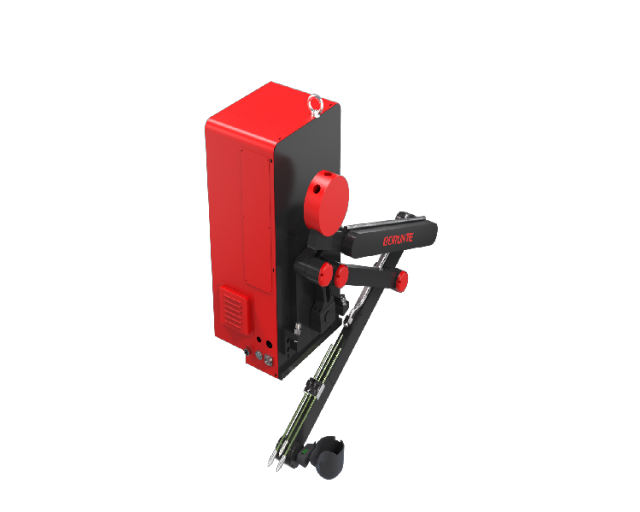

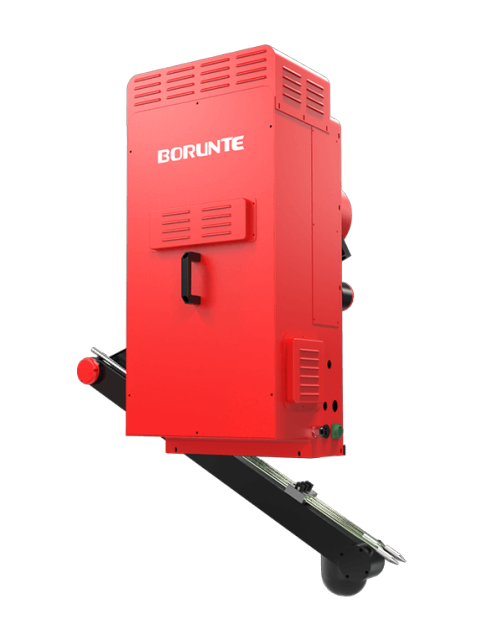

BRTYZGT02S2B - industrial robotic arm for die casting
Short Description
Main Specification
Arm Length (mm): 350
Repeatability (mm):
Loading Ability (kg): 4.5
Power Source (kVA): 0.61
product type robot is a two-axis robot developed by BORUNTE. It adopts a new drive control integrated control system, with fewer signal lines and simple maintenance. It is equipped with a handy mobile hand-held operating teaching pendant; the parameters and function settings are clear, and the operation is simple and fast. The whole structure is driven by a servo motor and RV reducer, which makes the operation more stable, accurate, and efficient.
| Applicable to die casting machine | 160T-400T |
| Msnipulator Motor Drive(kW) | 1kW |
| Tableapoon Motor Drive(kW) | 0.75kW |
| Arm reduction ratio | RV40E 1:153 |
| Ladle reduction ratio | RV20E 1:121 |
| Max.loading(kg) | 4.5 |
| Recommended tableapoon type | 0.8kg-4.5kg |
| Tableapoon Max(mm) | 350 |
| Recommended height for smelter(mm) | ≤1100mm |
| Recommended height for smelter arm | ≤450mm |
| Cycle Time | 6.23 (within 4s, the arm standby position starts to descend until the soup is injected) |
| Main control power | AC Single phase AC220V/50Hz |
| Power Source(kVA) | 0.93kVA |
| Dimension | length, width and height(1140*680*1490mm) |
| Weight(kg) | 220 |
