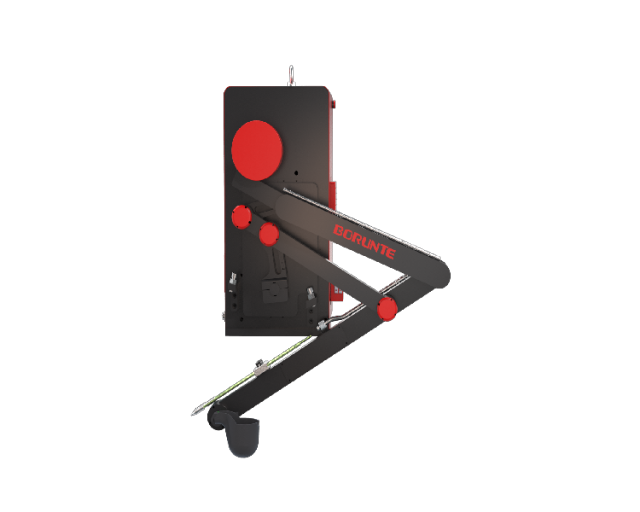

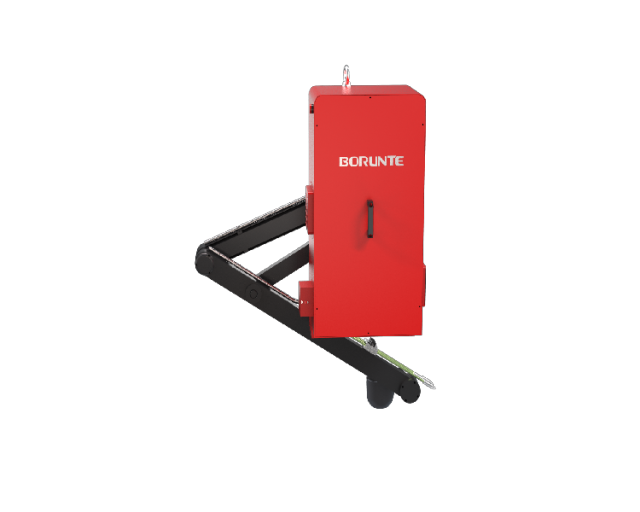

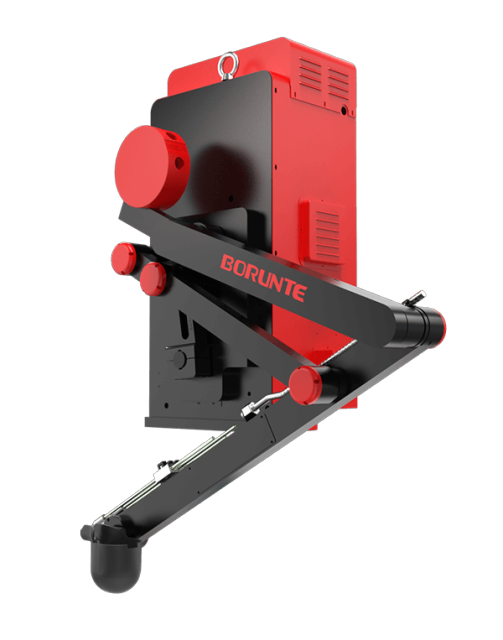

BRTYZGT04S2B - Two-Axis industrial robotic arm for Die Casting
Short Description
Main Specification
Arm Length (mm): 450
Repeatability (mm):
Loading Ability (kg): 6
Power Source (kVA): 1.59
product type robot is a two-axis robot developed by BORUNTE. It adopts a new drive control integrated control system, with fewer signal lines and simple maintenance. It is equipped with a handy mobile hand-held operating teaching pendant; the parameters and function settings are clear, and the operation is simple and fast. The whole structure is driven by a servo motor and RV reducer, which makes the operation more stable, accurate, and efficient.
product type robot is a two-axis robot developed by BORUNTE. It adopts a new drive control integrated control system, with fewer signal lines and simple maintenance. It is equipped with a handy mobile hand-held operating teaching pendant; the parameters and function settings are clear, and the operation is simple and fast. The whole structure is driven by a servo motor and RV reducer, which makes the operation more stable, accurate, and efficient.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication
| Applicable to die casting machine | 400T-800T |
| Msnipulator Motor Drive(kW) | 1kW |
| Tableapoon Motor Drive(kW) | 0.75kW |
| Arm reduction ratio | RV40E 1:153 |
| Ladle reduction ratio | RV20E 1:121 |
| Max.loading(kg) | 6 |
| Recommended tableapoon type | 4.5kg-6kg |
| Tableapoon Max(mm) | 450 |
| Recommended height for smelter(mm) | ≤1100mm |
| Recommended height for smelter arm | ≤500mm |
| Cycle Time | 7.3S (The standby position moves forward and returns to the standby position after completion) |
| Main control power | AC Single phase AC220V/50Hz |
| Power Source(kVA) | 1.12kVA |
| Dimension | length, width and height(1240*680*1540mm) |
| Weight(kg) | 230 |
