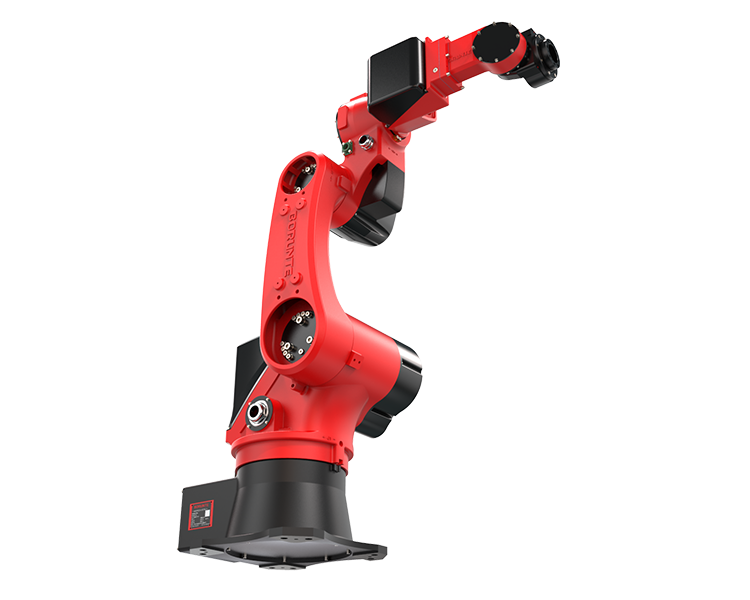

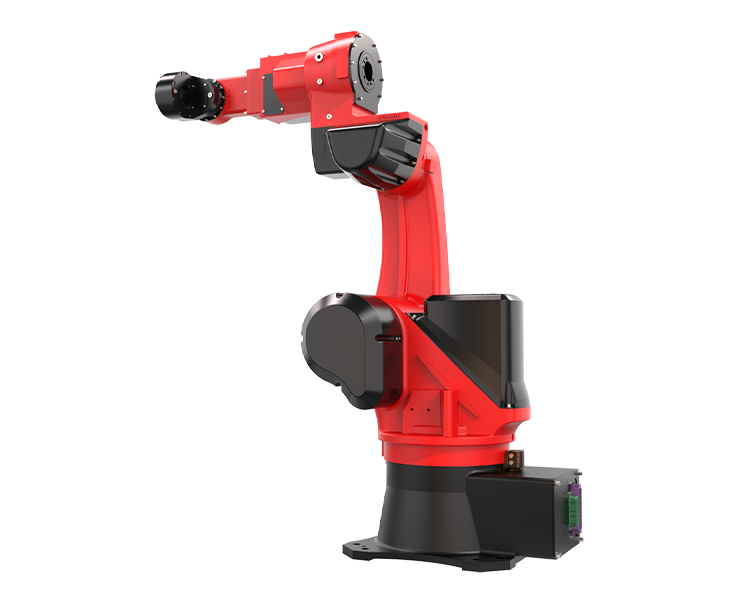

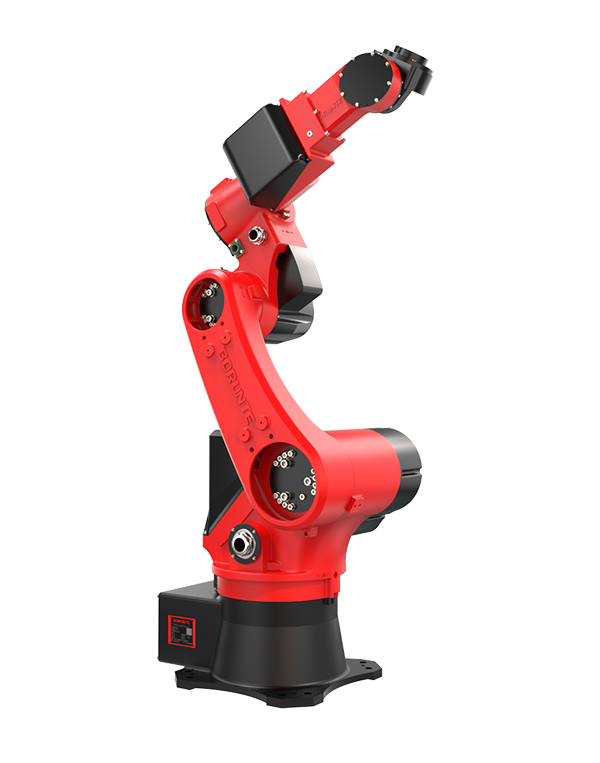

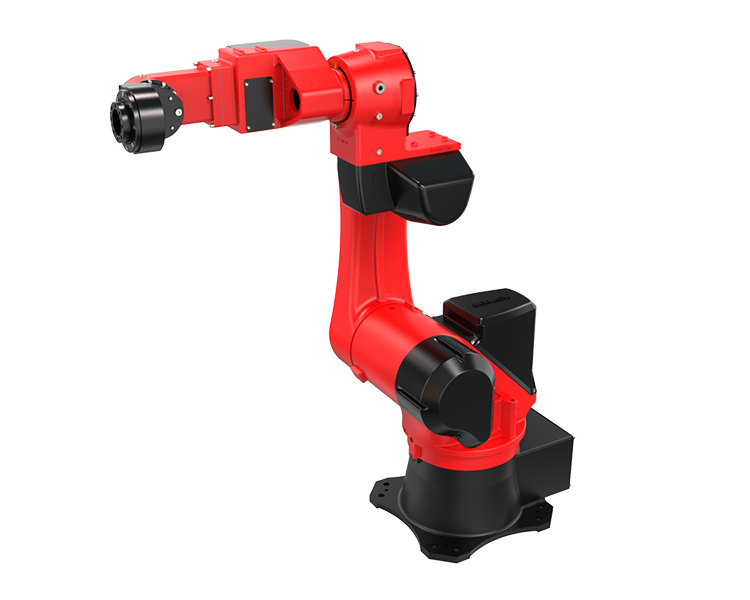

BRTIRPH1210A is a six-axis robot developed by BORUNTE for the welding, deburring and grinding application industries.
Short Description
BRTIRPH1210A is a six-axis robot developed by BORUNTE for the welding, deburring and grinding application industries.
Main Specification
Arm Length (mm): 1225
Repeatability (mm): ±0.07
Loading Ability (kg): 10
Power Source (kVA): 4.3
BRTIRPH1210A is a six-axis robot developed by BORUNTE for the welding, deburring and grinding application industries. It is compact in shape, small in size, light in weight, with a maximum load of 10kg and an arm span of 1225mm. Its wrist adopts a hollow structure, which makes the wiring more convenient and the movement more flexible. The first, second and third joints are all equipped with high-precision reducers, and the fourth, fifth and sixth joints are all equipped with high-precision gear structures. The high-speed joint speed enables flexible operation. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.07mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication
The product is engineered by a respected 6 axis robot manufacturer to deliver advanced performance in challenging manufacturing environments. As a premium 6 axis robot with a 1,225 mm arm span and a rated payload of up to 10 kg, it brings serious capability to high-throughput industrial automation. With repeatability of approximately ±0.07 mm and a protection grade of IP50 (main body) / IP54 (wrist) according to technical documentation from the supplier 6 axis robot series, this robot arm is built for demanding tasks such as arc welding, laser welding, deburring, cutting, stacking, handling and more. The compact structure ensures it fits into tight production cells, while the six-axis configuration enables full flexibility—rotations, tilting, and complex motion paths typical of high-end industrial robots. As part of a broader range of six-axis robots, the product embodies the integration readiness and motion freedom required for modern factories.
This 6 axis robot arm stands out for multiple reasons. First, its six axes allow for human-arm-like dexterity: full 360° in the last axis, tilt and twist across axes 4,5,6, enabling finishing operations, welding around complex geometries, and part handling in constrained spaces. The 10 kg payload means this robot can handle heavier end-effectors or tooling compared to smaller arms, making it suitable for demanding applications. The arm span of 1,225 mm gives a generous working envelope for medium-sized parts, while maintaining compactness for dense work cells. The repeatability of ±0.07 mm ensures precision critical to welding seams, grinding pathways, or assembly finishes. From the perspective of a supplier of six-axis robots, this model hits the sweet-spot between power, reach and flexibility. Additionally, the robot’s build quality and protection grade (IP50/IP54) mean it can operate in industrial environments with dust, cooling mist or moderate contamination—key for metal-working and surface finishing applications. Because the robot comes from a recognized six-axis robot manufacturer, support, spare parts and integration resources are available, reducing risk for OEMs or line integrators. Via a series of servo drives, reducers and built-in safety features, the product powers high-speed, repeatable cycles, making it an intelligent choice in industrial automation solutions.
When deployed as part of a full industrial automation solution, the product offers tangible benefits. It can be seamlessly integrated into systems involving vision guidance, etc., for weld-inspection loops, or into conveyance systems for post-process handling. Its flexibility supports multi-step operations: for instance welding a part, moving it, deburring it, then stacking—all using the same robot cell, thus reducing footprint and capital cost. This model from a top 6 axis robot manufacturer also facilitates modular deployment: robots can be added, reprogrammed or redeployed as product-mix changes, giving manufacturers future-proofing. The high payload and six-axis dexterity mean that automation integrators can install heavier end-effectors (grippers, weld heads, grinders) without sacrificing cycle speed. In the context of industrial robots, this machine embodies the transition from single-task automation to smart, adaptive, multi-task cells. The ability to perform close-quarters operations, complex motions, and heavy-end-effector tasks makes it a compelling choice for industries undergoing automation transformation—especially when time-to-market, flexibility and uptime are critical. Therefore, for any manufacturer looking for robust six-axis robots or supplier 6 axis robot solutions, the BRTIRPH1210A offers a high-value proposition.
| Item | Range | Max.speed | |
| Arm | J1 | ±165° | 164°/s |
| J2 | -95°/+70° | 149°/s | |
| J3 | ±80° | 185°/s | |
| Wrist | J4 | ±155° | 384°/s |
| J5 | -130°/+120° | 396°/s | |
| J6 | ±360° | 461°/s | |
Six-Axis Flexibility and High Payload
As a six-axis robot built by a reputable 6 axis robot manufacturer, the product offers full motion freedom akin to a human arm. Axes 4 5 6 rotate and tilt enabling complex tool paths, weld seams around corners, or finish operations in constrained spaces. Combined with a 10 kg payload and 1,225 mm reach, it supports heavier tooling and larger parts than entry-level robots. This makes it ideal for welding heads, grinding spindles, or load/unload modules that demand strength plus dexterity. The six-axis configuration means one robot can handle what previously required multiple machines—reducing footprint, wiring and control complexity. For the manufacturing line looking for next-gen automation, this model enables real flexibility in deployment.
Precision, Durability and Industrial Grade Protection
Precision is vital in high-value manufacturing. The product delivers repeatability of ±0.07 mm and a protection grade of IP50/IP54 for wrist, ensuring it can handle dusty, metal-working, mist-spray environments with reliability. Its structure uses high-accuracy reducers on axes 1-3 and gear structures on axes 4-6 according to technical documentation. Scribd The durable mechanical design and premium components reduce maintenance downtime, extend life-cycle and maximise return on investment — attributes expected from leading 6 axis robot manufacturers. The compression of maintenance cycles and robust build mean line integrators can rely on high availability and predictable servicing.
Integration-Ready in Smart Manufacturing Cells
Designed as more than just a robot arm, the product from a supplier of six-axis robots is integration-ready for modern automation architectures. It easily connects with vision systems, conveyors, welding power sources, finishing tools or AGVs. Its six-axis nature enables consolidated workflow: welding, handling, grinding and palletising can be combined in one cell. This reduces control cabinets, simplifies programming, and accelerates deployment. For manufacturers adopting plug-and-produce strategies, this robot fits perfectly into modular automation. Because the product comes from an established supplier of 6 axis robot solutions, lifecycle support, spare parts and documentation are available, further lowering the total cost of ownership and accelerating achieving production goals.
Automated Welding and Deburring in Metal Fabrication
In heavy-metal fabrication factories producing automotive parts, truck frames or structural components, the product six-axis robot arm is deployed for arc welding, laser welding, and post-weld deburring. Its 10 kg payload supports welding torches or deburring tools, while the six-axis motion enables access to tight joints, overlapping structures and curved surfaces. The repeatability of ±0.07 mm ensures consistent weld penetration and cleaning results, and the compact 1225 mm arm span allows installation in high-density cells. By reducing manual labour, improving quality and shortening cycle times, manufacturers adhere to the latest industrial robotics solutions roadmap.
Finishing, Grinding and Polishing for Large Work-pieces
Manufacturers processing large castings, structural weldments or machining centres often need flexible finishing equipment. The product acts as a robotic finishing arm: it picks up a grinder or polisher, follows programmed paths around large workpieces, and stacks finished parts onto conveyors. The six-axis design means it can tilt, twist and roll along part surfaces, while the robust mechanics handle the edge forces of finishing. With integration into smart production lines, this 6 axis robot arm improves throughput, ensures uniform finishing quality and frees skilled operators for other tasks.
Material Handling & Automated Stacking in High-Mix Manufacturing
In plants manufacturing variable product mixes — such as appliances, aerospace components or heavy equipment — the product provides versatile material-handling capability. It can retrieve large parts from conveyors, rotate and orient them, load machining centres, or stack finished items. Because of its six-axis flexibility and high payload, it adapts to multiple products without retooling. When integrated with AGV systems, vision-guided placement and downstream conveyors, the robot becomes a key node in a sophisticated automation system. This demonstrates how six-axis robots support next-gen industrial robots solutions for dynamic manufacturing environments.
BORUNTE ROBOT CO., LTD. is a high-tech enterprise engaged in the research & development, production and sales of industrial robots, IMM robots and their parts. The company places strong emphasis on R&D, continuously investing in innovation and technology, and has produced more than 70 types of industrial robots and IMM robots to date. As one of the leading industrial robots manufacturers, we are committed to delivering better and more advanced robots to customers worldwide. Our industrial robotics solutions span a wide array of applications including product packaging, injection molding, loading and unloading, assembly, metal processing, electronic equipment, handling, stamping, polishing, tracking, welding, machine tools, palletizing, spraying, die-casting and bending. Based in Shenzhen, Guangdong Province, China (Building 21, Jixiang Garden, Bantian Street, Longgang District) we serve global clients with a customer-centric philosophy. We offer not just machinery but end-to-end automated robotics systems tailored to specific production needs, with emphasis on quality, innovation, responsive support and brand development. By partnering with us, clients access expert-grade industrial robots, modular automation cells, and full lifecycle services that help transition manufacturing toward smart, efficient and scalable operations.
Q1: What is the payload and reach of the BRTIRPH1210A?
A1: The product supports a maximum payload of 10 kg and has an arm span (reach) of approximately 1,225 mm.
Q2: What axis configuration does this robot have?
A2: It is a six-axis robot (also called 6 axis robot or 6 axis robot arm) enabling full flexibility and complex motion paths.
Q3: What industries or applications is this model suited for?
A3: It is ideal for welding, deburring, grinding, cutting, handling, stacking, and finishing applications in metal fabrication, automotive, appliance manufacturing and other high-mix environments.
Q4: What environmental protection level does the robot offer?
A4: The robot body is rated around IP50, with the wrist rated IP54, making it suitable for typical industrial workshop environments with dust and light mist.
Q5: Can this robot integrate with larger automation systems?
A5: Yes — as a product from a top 6 axis robot manufacturer and supplier 6 axis robot provider, it supports integration with vision systems, conveyors, tooling, AGVs and smart manufacturing platforms for comprehensive automation solutions.
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
