Short Description
Main Specification
Arm Length (mm): 1500
Repeatability (mm): ±0.05
Loading Ability (kg): 8
Power Source (kVA): 3.18

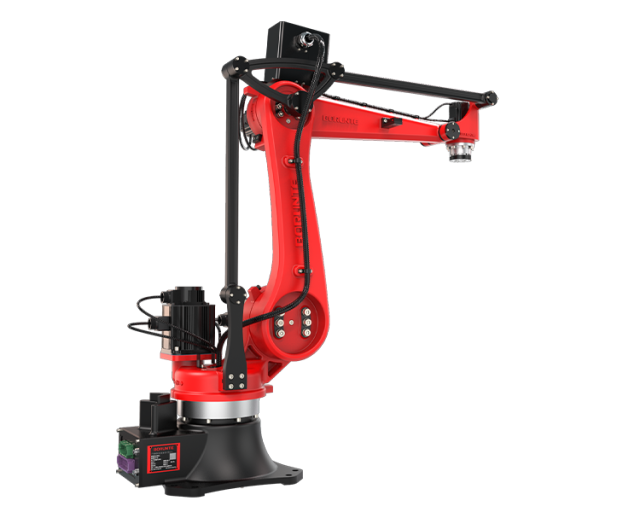

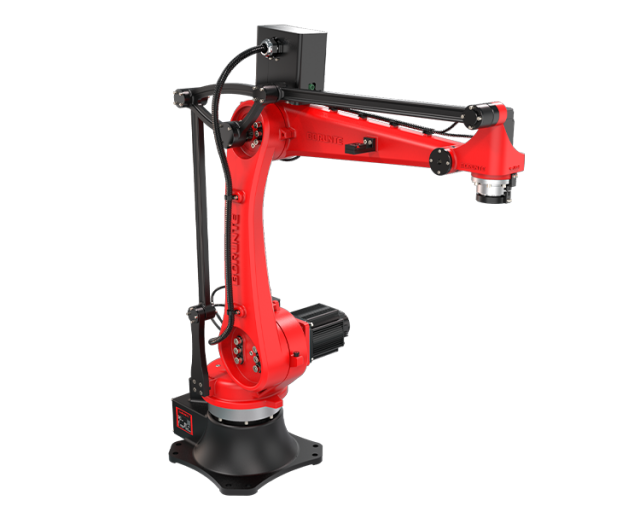

The product type robot is a four-axis robot developed by BORUNTE, it applies full servo motor drive with fast response and high position accuracy. The maximum load is 8kg, the maximum arm length is 1500mm. Compact structure achieves a wide range of movements, flexible sports, precise. Suitable for dangerous and harsh environments, such as stamping, pressure casting, heat treatment, painting, plastic molding, machining and simple assembly processes. And in the atomic energy industry, completing the handling of hazardous materials and others. It is suitable for punching. The protection grade reaches IP40. The repeat positioning accuracy is ±0.05mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication

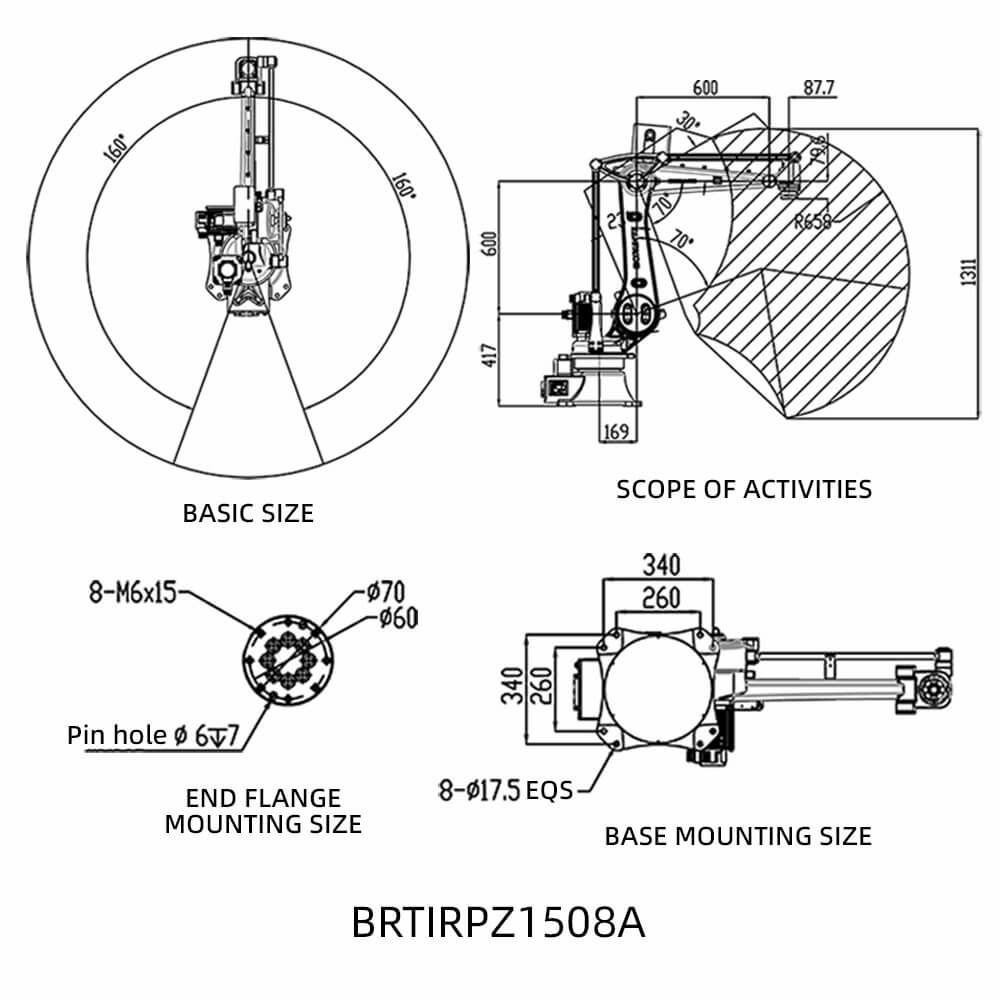

| Item | Range | Max.speed | |
| Arm | J1 | ±160° | 219.8°/S |
| J2 | -70°/+23° | 222.2°/S | |
| J3 | -70°/+30° | 272.7°/S | |
| Wrist | J4 | ±360° | 412.5°/S |
| R34 | 60°-165° | / | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Targeted Functional Role for Automation Systems
The The product, developed by a leading axis robot manufacturer, is designed for industrial setups requiring flexible automation with spatial constraints. Its 4 axis robot arm configuration supports a maximum payload of 8 kg and offers a 1500 mm extended reach, making it well-suited for light-to-medium duty tasks such as assembly, material handling, and process demonstration. This robot is intended for engineering and production facilities seeking reliable, repeatable accuracy in environments where space and operational safety are critical considerations. Its beneficial features cater to technicians, engineers, and integrators needing a compact solution for automating repetitive tasks.
Advanced Technical Specifications and Functional Capabilities
This 4 axis robot incorporates a full servo motor drive system enabling rapid response and smooth trajectory execution. It achieves a high repeat positioning accuracy of ±0.05 mm, which is essential for precision processes. The robot arm’s joint speed capabilities reach up to 412.5°/s on the fourth axis, and the structural arm length of 1500 mm allows a broad operational envelope. With an IP40 protection rating, the assembly demonstrates robustness against dust ingress while supporting versatile motion ranges per joint axis. These technical attributes confirm the robot’s compatibility for integration with various control systems and manufacturing workflows, ensuring performance consistency and enhanced productivity.
Integration in Industrial Applications and Operational Benefits
The The product excels in applications such as stamping, pressure casting, painting, plastic molding, and machining where precise handling of components up to 8 kg is essential. Its compact footprint facilitates deployment in hazardous or confined environments, including heat treatment or coating lines. Industrial robot manufacturers emphasize its adaptability for tasks like simple assembly operations and part transfer, broadening automation possibilities for small and mid-sized production batches. This solution delivers measurable improvements in cycle time, repeatability, and operational safety, driving efficiency and cost savings while complying with industrial standards in controlled manufacturing environments.
Product Advantages
Structural Design and System Integration Benefits
The The product features a thoughtfully engineered compact structure enabling wide-ranging motion despite spatial limits. Its modular design harmonizes seamlessly with existing automation lines, offered by a seasoned axis robot manufacturer focusing on scalable solutions. The four-axis configuration provides flexible articulation allowing smooth trajectories across multiple planes. The inclusion of a full servo motor drive system ensures dynamic control with minimal backlash. With an IP40 rating, the design supports operation in industrial settings demanding moderate protection against particulate intrusion. These aspects collectively foster easy installation, maintenance, and adaptability to customized process requirements.
Performance Reliability and Operational Usability
From a performance standpoint, this 4 axis robot arm delivers consistent repeatability (±0.05 mm) essential for precision-dependent tasks, supporting payloads up to 8 kg without sacrificing speed or accuracy. Fast axis velocities enhance throughput while preserving control, which optimizes cycle times in manufacturing applications. User interfaces are designed for straightforward programming and integration, facilitating smooth commissioning and reduced downtime. Engineers benefit from its compatibility with diverse control protocols, increasing system interoperability. The robust construction combined with scalable functionality allows users to achieve return on investment through improved operational efficiency and minimized human intervention in repetitive processes.
Use Scenarios
Application in Controlled Manufacturing and Assembly Lines
Within production environments focused on light assembly and component handling, the The product serves as a precise automation element capable of executing repetitive pick-and-place tasks for payloads up to 8 kg. Operating in conditions such as plastic molding and machining, the robot’s high positional accuracy supports stringent quality requirements. Its compact footprint and flexible motion range allow integration on assembly lines where space constraints and safety regulations are paramount. The 4 axis robot facilitates streamlined workflow automation by collaborating with programmable logic controllers and safety interlocks, ensuring compliant, efficient manufacturing throughput.
Role in Material Handling and Hazardous Environment Operations
In scenarios involving hazardous or harsh industrial environments — including stamping, heat treatment, and pressure casting processes — this 4 axis robot arm provides essential automated material handling capabilities. The IP40-rated protection ensures reliable function amidst dust and particulate exposure common in such settings. The robot supports controlled transfer and positioning of sensitive parts without operator exposure to risk. Integration with sensor systems and safety protocols enables real-time feedback and compliance with industrial safety standards. Through automation of labor-intensive or dangerous tasks, the unit enhances operational safety, reduces human error, and supports consistent process execution across complex workflows.
What is the maximum payload and arm length of the The product four-axis robot?
Our 4 axis robot The product supports a payload capacity of up to 8 kg and features a 1500 mm arm length. This combination enables precise, flexible operation across various industrial tasks requiring compact, accurate motion control.
Can the The product be customized to fit specific industrial applications?
We offer tailoring options within the parameters of our standard four-axis robot design. Adjustments can be made for integration into controlled environments, assembly lines, and material handling setups, ensuring compatibility with your production requirements.
What installation and maintenance support does BORUNTE provide for industrial robot buyers?
We assist with installation protocols and provide technical support to ensure smooth integration of our axis robots into your workflow. Regular maintenance guidelines are provided to optimize the robot’s precision and operational lifespan in manufacturing settings.
Is the The product suitable for hazardous or harsh environments?
Yes, the The product is designed to operate reliably in controlled hazardous conditions like stamping, heat treatment, and pressure casting. Its IP40 rating protects it against solid intrusions, supporting safe use in demanding industrial processes.
