Short Description
Main Specification
Arm Length (mm): 2400
Repeatability (mm): ±0.2
Loading Ability (kg): 80
Power Source (kVA): 5.53

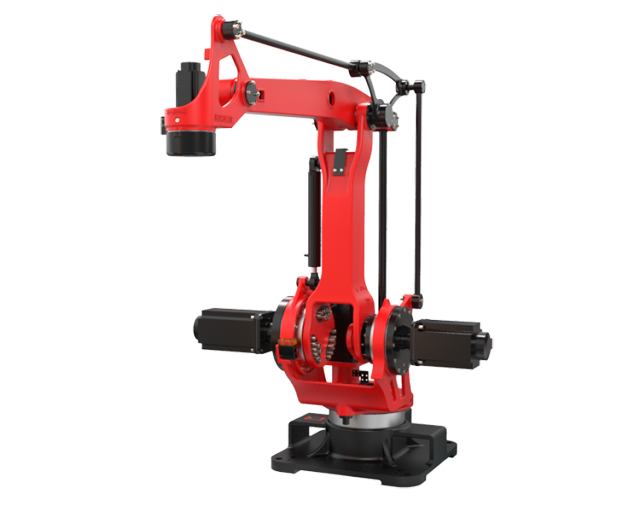

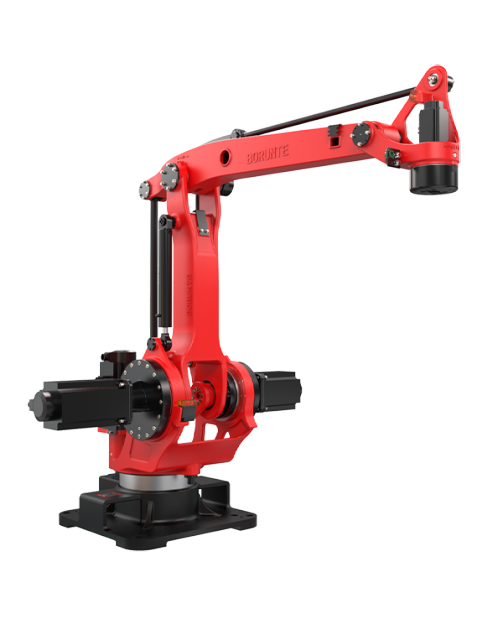

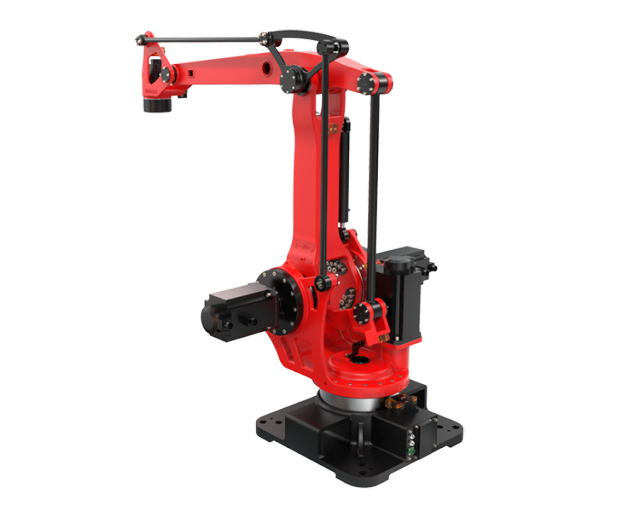

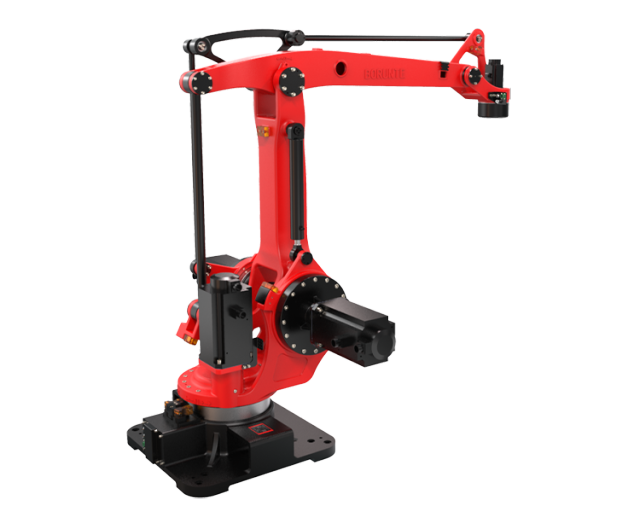

BRTIRPZ2480A type robot is a four-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2411mm. The maximum load is 80kg. It's flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, dismantling and stacking etc. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication
The product is designed by a leading axis robot manufacturer to meet the demands of high-volume, repetitive automation in manufacturing and logistics. As a 4 axis robot arm, it provides streamlined motion trajectories suited to tasks that do not require full six-axis articulation—but where speed, reliability and cost-effectiveness are critical. The compact four-axis architecture simplifies programming, lowers maintenance burdens and suits dense work-cell layouts. With optimized mechanical structure, high-quality components and a focus on uptime, the product stands out among 4-axis robot offerings from top automation suppliers.
In the realm of industrial automation, this 4 axis robot is tailored for continuous duty—its design accounts for extended operation in loading/unloading, palletizing, stacking and handling applications. The reduced axis count compared to more complex robots means fewer joints to service, less cabling, faster commissioning and lower total cost of ownership. The 4-axis robot arm leverages the manufacturing expertise of its maker, integrating standard interfaces, safety protocols and modular concepts that make it straightforward to incorporate into broader automation systems. As an industrial automation solution, it gives companies an efficient option for large-scale deployment of industrial robots.
The product offers several performance-oriented features tailored for industrial use. First, its arm design ensures high cycle speeds and stable operations even under heavy throughput. The structural rigidity and precise reducers reduce vibration and improve repeatability, enabling consistent placement and handling of parts or pallets. The 4-axis robot arm’s simplified kinematics allow tighter cell footprint and faster motion with less complexity. Second, the machine is built for durability—every major joint and bearing assembly is optimized for long lifecycle and low downtime, attributes expected from an axis robot manufacturer with industrial-grade robotics experience. Third, integration readiness is built into the design: the robot supports standard field-bus communication, accepts vision-guided pick-and-place tasks, interfaces with conveyors and palletizing modules and fits into smart production cells. As a result, factories adopting this model gain a high-efficiency 4 axis robot that forms part of a broader industrial robots ecosystem.
Deploying the product within an automation cell yields distinct application benefits. Because it is a 4-axis robot arm from a reputable axis robot manufacturer, integrators and manufacturers can scale deployment quickly, leveraging standardized tool-kits, service networks and spare-parts availability. Its reduced complexity supports faster commissioning and minimized engineering effort compared to more complex robots. In handling, loading/unloading, tray transfer and palletizing workflows, the machine pairs well with conveyors, vision systems, AGVs and packaging machines—forming a cohesive industrial robots solution. Additionally, the system’s savings in floor space, maintenance resource and cost overhead mean that companies can deploy more units and multiply throughput without proportional rise in cost. Therefore, for manufacturers seeking to implement large-scale automation of industrial robots, the product presents an efficient, reliable and scalable solution.
| Item | Range | Max.speed | |
| Arm | J1 | ±160° | 148°/s |
| J2 | -80°/+40° | 148°/s | |
| J3 | -42°/+60° | 148°/s | |
| Wrist | J4 | ±360 | 299°/s |
| R34 | 72° -195° | / | |
Efficient Simplified Architecture for High-Volume Operations
The product is 4 axis robot arm design emphasizes streamlined architecture—fewer axes mean lower mechanical complexity, faster cycles and easier programming. For repetitive tasks such as palletizing or tray handling, this translates directly into higher throughput, lower commissioning costs and shorter downtime intervals. As an offering from a recognized axis robot manufacturer, this robot supports long production runs with minimal intervention, making it a practical choice for factories aiming to scale volume while controlling maintenance costs.
Compact Footprint with Durable Industrial Performance
In manufacturing environments where space is constrained, the compact form factor of the product is a key benefit. The four-axis design takes up less room, enabling tighter work-cell layouts without sacrificing cycle speed or stability. The industrial-grade build ensures the robot arm withstands continuous heavy-duty operations—its structural rigidity, quality reducers and bearings reduce wear and maintain accuracy over time. For operations running multiple shifts or requiring long operational lifetimes, this durable design is critical for cost-effective automation deployment.
Seamless Integration and Scalable Deployment
Because this model comes from an axis robot manufacturer with experience in industrial robots, it benefits from standardized interfaces, proven service support and global parts availability. The product is designed to integrate with packaging modules, conveyor systems, palletizing stations and vision equipment—offering a full automation path rather than a standalone robot. This integration capability means faster system build-out, scalable expansion and predictable performance across multiple work-cells. For companies rolling out large automation footprints, such scalability and support infrastructure are indispensable.
Scenario 1 – Heavy-duty Palletizing and Stacking in Logistics Centers
In logistics hubs, distribution centres or manufacturing plants with heavy finishing flows, stacking finished goods, transferring large trays or cartons and interfacing with automated storage systems. With its simplified but high-throughput architecture, it can cycle thousands of picks and placements per hour, orienting cartons, layer-stacking pallets and interacting with conveyors or AGVs. The compact footprint allows installation in tight aisles or adjacent to existing lines, and the durable build ensures consistent operation even under high duty-cycles. This makes it an optimal choice for manufacturers seeking to deploy multiple units across a warehouse or production floor to meet high throughput requirements with minimal space and service overhead.
Scenario 2 – Machine Load/Unload and Transfer in High-Mix Production Lines
In manufacturing plants producing variable product types—such as appliances, electronics or consumer goods—the product supports machine load/unload tasks, tray transfers, part feeding and assembly-cell transfers. The 4-axis robot arm picks raw or finished parts from conveyors or indexing tables, loads machines, unloads outcomes into trays or cartons and moves them to staging areas. Because its motion is simpler yet reliable, change-over is faster, programming easier and maintenance lighter compared to more complex machines. The model’s integration readiness with feeders, vision sensors and conveyors makes it suited for dynamic production lines where flexibility and efficiency matter. The result is smoother transitions between product types, consistent throughput and reduced labour.
Scenario 3 – Packaging Automation for Medium-Sized Goods with Fast Throughput
For packaging operations dealing with medium-sized goods—like electronics, FMCG, food packaging, cartons or trays—the product offers automation for pick-and-place, tray stacking, carton erecting, pallet prepping and conveyor transfer. It performs repetitive motions with minimal downtime, fits into packaging lanes, and works with auxiliary machines such as carton erectors, sealers or automatic stretch-wrappers. Its reduced axis complexity means less maintenance and quicker setup—ideal in packaging environments where change-over cost and downtime heavily impact margins. Because the robot comes from a trusted axis robot manufacturer, companies can trust the performance, service network and expandability to scale packaging automation across multiple lines with predictable results.
BORUNTE ROBOT CO., LTD. (also branded as BORUNTE) is a high-tech enterprise specialising in the research, development, production and sales of industrial robots, IMM robots and related components. Founded in 2008, the company has built a significant track record in industrial automation. With a registered capital of RMB 225 million, BORUNTE focuses on innovation and brand development alongside product quality. Their product portfolio covers two-axis, four-axis, five-axis and six-axis robots, AGV systems and packaging automation series. BORUNTE’s automation solutions span a wide range of industries including glass processing, ceramic board manufacturing, sanitary ceramics, solar energy, metallurgy, industrial furnace, mining, power, chemical and laboratory automations. Through offering complete industrial robotics solutions rather than standalone machines, the company supports customers in building smart factories, reducing manual labour and improving efficiency. Their service model emphasises customer-centric lifecycle support, full-line automation and integration readiness. With offices in Guangdong province, a matured supply chain and global export activities, BORUNTE is committed to serving as a reliable partner to manufacturers, integrators and automation enterprises worldwide.
Q1: What axis configuration does the BRTIRPZ2480A have?
A1: The product is a 4-axis robot (4 axis robot) designed for high-volume, repetitive automation tasks like palletizing, handling or machine load/unload.
Q2: What industries or tasks is this 4-axis robot arm suited for?
A2: It is suitable for logistics, packaging, machine load/unload, tray handling, palletizing, transfer and assembly applications especially where high throughput and reliable operation are required.
Q3: Who manufactures the product?
A3: It is manufactured by BORUNTE ROBOT CO., LTD., a respected axis robot manufacturer offering a broad range of industrial automation robots and systems.
Q4: Can this robot integrate with existing automation systems?
A4: Yes — the product is designed to integrate with conveyors, AGVs, vision systems, palletizing modules and packaging automation systems, making it part of complete industrial robots solutions.
Q5: What maintenance requirements should I consider?
A5: Maintenance includes regular joint lubrication, reducer inspection, monitoring servo drives, verifying communication interfaces and periodic calibration. The simplified 4-axis design reduces maintenance complexity compared to higher-axis robots.
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
