Short Description
Main Specification
Arm Length (mm): 600
Repeatability (mm): ±0.02
Loading Ability (kg): 3
Power Source (kVA): 5.62

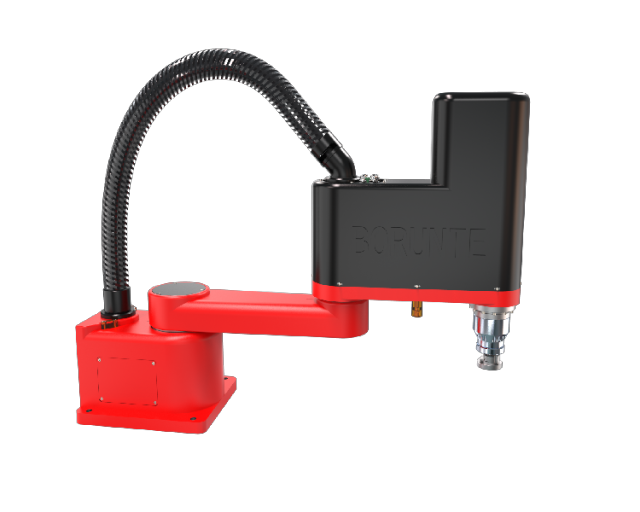

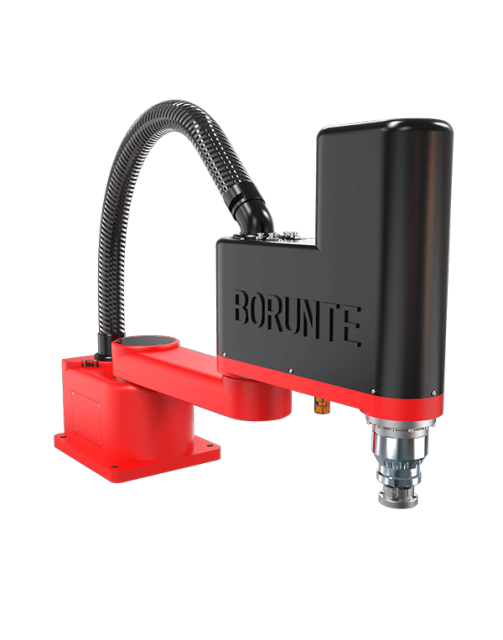

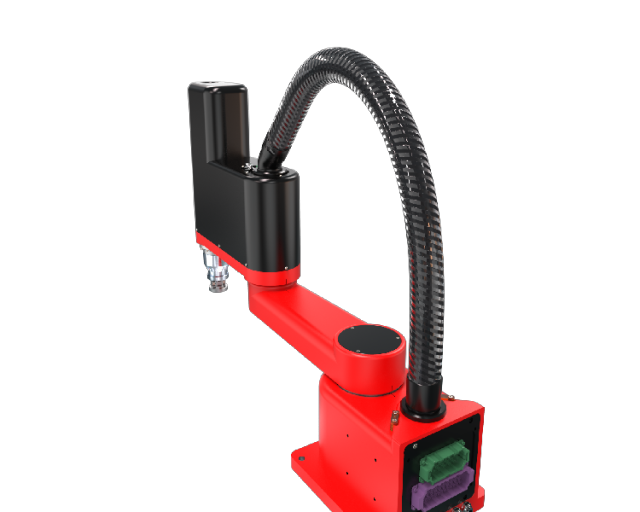

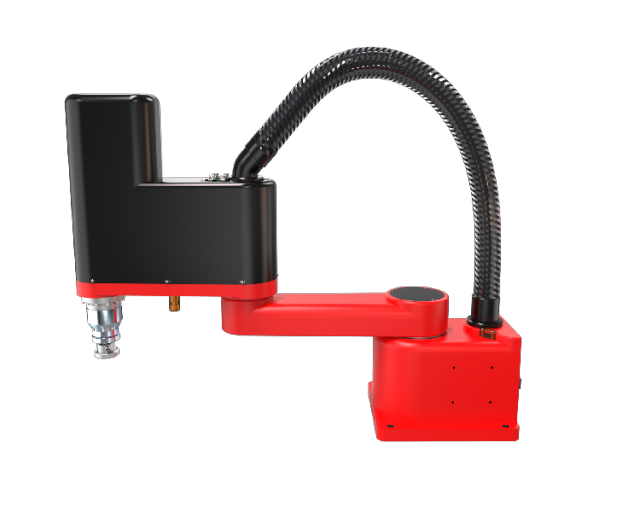

The product type robot is a four-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations.The maximum arm length is 600mm. The maximum load is 3kg.It's flexible with multiple degrees of freedom. Suitable for printing and packaging, metal processing, textile home furnishing, electronic equipment, and other fields. The protection grade reaches IP40. The repeat positioning accuracy is ±0.02mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication

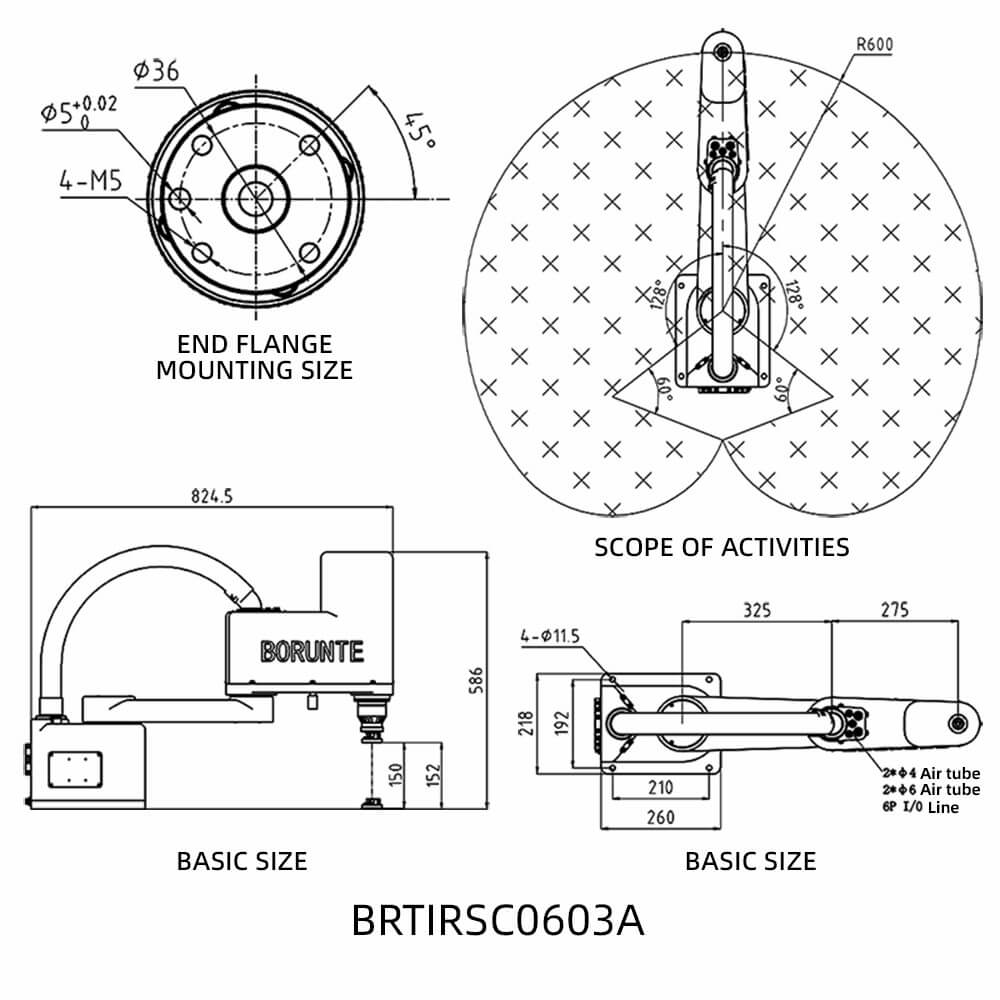

| Item | Range | Max.speed | |
| Arm | J1 | ±128° | 480°/S |
| J2 | ±145° | 576°/S | |
| J3 | 150mm | 900mm/S | |
| Wrist | J4 | ±360° | 696°/S |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Functional Role and Target User Profile
product serves as an optimal automation solution for manufacturers seeking reliable, continuous operation in repetitive task environments. Designed by a reputable industrial robot manufacturer, this 4 axis robot specifically targets industries requiring high-throughput pick-and-place, assembly, and processing workflows. Its 600 mm arm length and 3 kg payload capacity enable it to handle small to medium-sized components, fitting well in compact automation cells. This model is engineered for engineering teams, production managers, and integrators aiming to reduce downtime and increase throughput without complex customization, making it a practical choice for laboratories, workshops, and manufacturing lines with frequent cycle requirements.
Technical Specifications and Measurable Performance
This 4 axis robot arm is engineered with four joints, delivering optimal flexibility and speed: J1 rotational speed reaches 480°/s; J2 up to 576°/s; J3 linear travel measures 150 mm with speeds up to 900 mm/s; and J4 rotation achieves 696°/s. Its repeatability precision stands at ±0.02 mm, ensuring consistent and accurate placement essential for high-precision assembly or inspection operations. The robust design complies with IP40 standard, verified for protection against environmental factors typical in industrial workshops. The system draws power from a 5.62 kVA source and supports easy integration with various end-effectors, enhancing modularity and automation versatility. As a product from an established axis robot manufacturer, reliability and engineering consistency are rigorously validated.
Industry Implementation and Practical Automation Benefits
The product is applied across diverse sectors such as electronics manufacturing, textile production, printing and packaging, and metal processing. Its compact footprint and precise motion control enable optimization of workflows requiring high-speed, repeatable manipulation of components. Industrial users benefit from its balanced combination of speed and repeatability, which minimizes cycle times and improves overall production consistency. Integration capabilities allow seamless interfacing with automated handling and inspection systems, which aligns with industry trends toward smart manufacturing. This unit supports short-run manufacturing and rapid changeovers, contributing to improved operational flexibility for enterprises focused on small and medium batch production. Offered by a leading industrial robot manufacturer, it represents a strategic automation asset.
Structural and System Design Benefits
The design of the product incorporates a streamlined four-axis configuration that maximizes compactness without compromising operational reach or load capacity. Developed by a prominent axis robot manufacturer, the robotic arm uses robust mechanical joints optimized for high-speed rotation and linear travel with minimal backlash. Its modular architecture supports swift integration with a variety of end-effectors, enabling adaptation across different application demands. The protection rating of IP40 assures structural resistance to standard workshop contaminants, enhancing durability. This level of engineering precision in the 4 axis robot design facilitates straightforward maintenance and system scalability, addressing evolving production requirements with minimal system complexity.
Operational Performance and User Efficiency Advantages
The product distinguishes itself with high repeatability (±0.02 mm) and rapid joint speeds that together reduce cycle times while maintaining positional accuracy. For users, this translates into enhanced throughput and consistent quality performance in automated lines. Ease of programming and compatibility with existing industrial automation platforms simplify deployment, minimizing integration timelines. The robot’s manageable payload of 3 kg and arm reach of 600 mm are tailored to handle typical small-batch or prototype-level tasks effectively, benefiting system integrators and manufacturing engineers focused on ROI and efficiency. Its reliability reduces unplanned downtime, improving overall process stability and providing a cost-effective automation tool delivered by an experienced industrial robot manufacturer.
Automated Assembly in Electronics Manufacturing
In electronics manufacturing environments where precision and repeatability are essential, the product plays a critical role as a compact 4 axis robot arm performing intricate pick-and-place and assembly tasks. Its ±0.02 mm positional accuracy ensures precise component handling, while its 600 mm reach and 3 kg payload accommodate various small electronic parts. The IP40 protection level allows stable operation within cleanroom-compatible workshops. Integration into automated production lines enables synchronized workflows with conveyors and vision systems, supporting high-volume output with minimal human intervention. This solution, sourced from a reputable axis robot manufacturer, aligns with industry standards for reliability and precision, enhancing productivity and product quality compliance.
Role in Printing and Packaging Automation
Within printing and packaging sectors, repetitive and high-speed handling processes benefit significantly from the deployment of the product 4 axis robot. The arm’s high-speed joint movements facilitate rapid sorting, packing, and labeling tasks, increasing line throughput while maintaining accuracy. Its structural design, compliant with IP40 standards, ensures operational stability under typical packaging floor conditions. Users integrate it with custom or standard end-effectors suited for handling various media materials, achieving seamless workflow automation. The inherent adaptability and robust performance provided by a trusted industrial robot manufacturer support flexible production schedules and short-run batch changes, reducing manual labor and elevating operational efficiency across packaging systems.
What industries commonly use the product robot?
We design the product 4 axis robot arm to serve industries such as electronics, textile home furnishing, metal processing, printing, and packaging. Its versatility and precision make it ideal for repetitive small-to-mid-sized automation tasks in these sectors.
Can the product be customized to fit specific automation needs?
Our product supports easy integration with various end-effectors tailored for tasks like assembly, handling, or packaging. While the base design remains consistent, we assist clients in adapting the robot’s tooling interface to meet unique production requirements.
What support do you provide for installation and maintenance?
We offer technical guidance during installation to ensure the product robot operates optimally within your automation cell. Our team advises on routine maintenance practices aimed at maintaining the performance and longevity expected from an industrial 4 axis robot.
How do you ensure reliable delivery and after-sales service?
We manage logistics carefully to deliver the product promptly and provide ongoing support after purchase. Our specialists are available to answer questions and troubleshoot, ensuring minimal downtime for your automated production line.
