Short Description
Main Specification
Arm Length (mm): 800
Repeatability (mm): ±0.05
Loading Ability (kg): 10
Power Source (kVA): 4.3

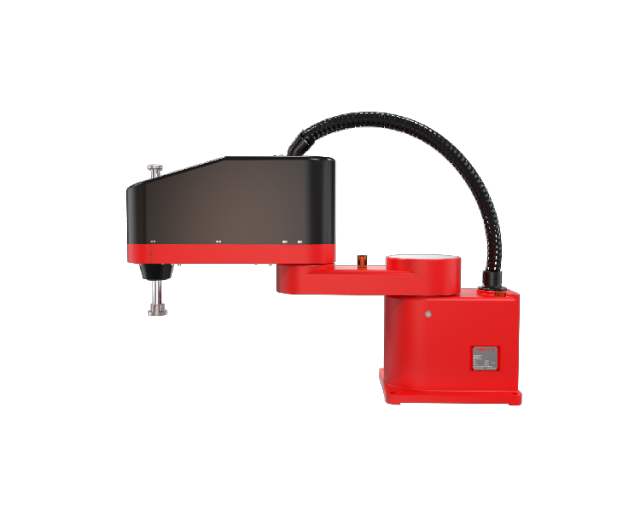

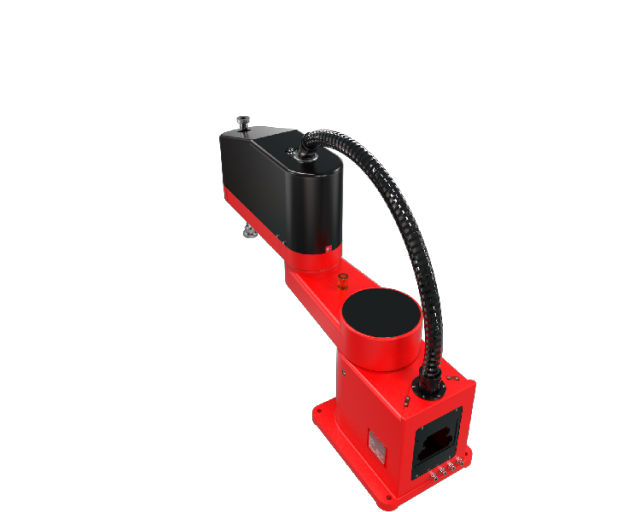

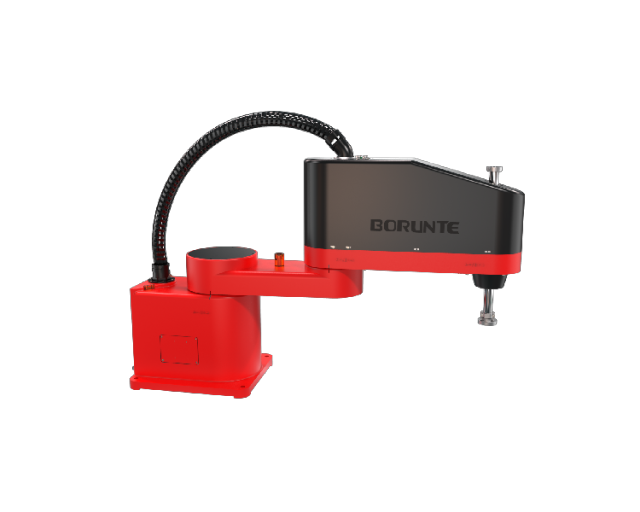

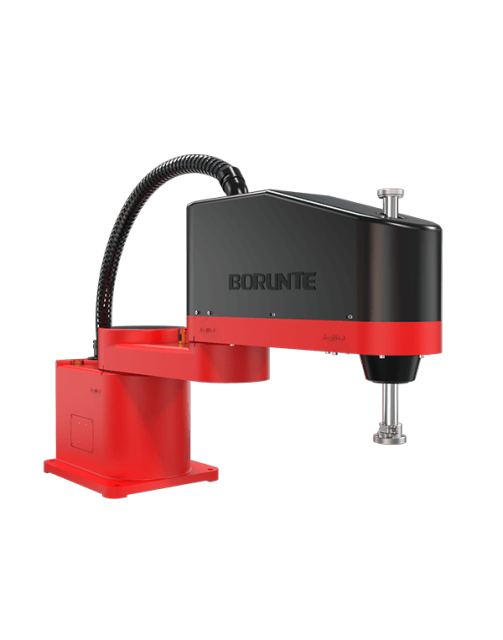

product type robot is a four-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations. The maximum arm length is 800mm. The maximum load is 10kg. It's flexible with multiple degrees of freedom. Suitable for printing and packaging, metal processing, textile homefurnishing, electronic equipment, and other fields. The protection grade reaches IP40. The repeat positioning accuracy is ±0.03mm.
Accurate Fast Long Low failure Reduce Telecomm
positioning service life rate labor unication

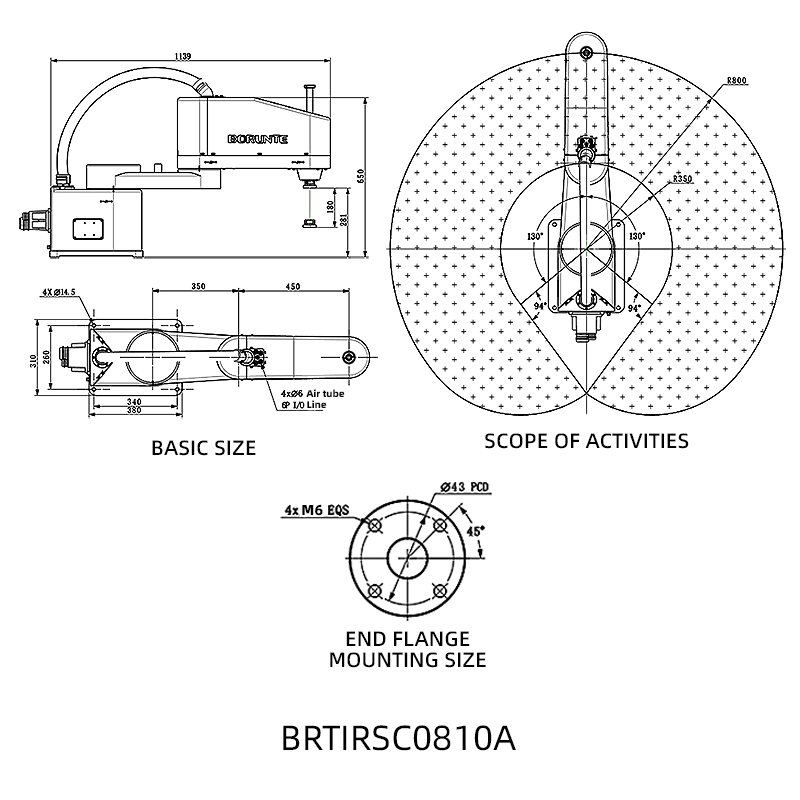

| Item | Range | Max.speed | |
| Arm | J1 | ±130° | 300°/s |
| J2 | ±140° | 473.5°/s | |
| J3 | 180mm | 1134mm/s | |
| Wrist | J4 | ±360° | 1875°/s |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
Product Description
Functional Positioning for Mid-Scale Automation Tasks
The product, engineered by an established axis robot manufacturer, targets applications requiring consistent, repetitive motions in small to mid-scale production environments. This 4 axis robot is optimized to perform long-term operations such as pick-and-place and assembly with an 800 mm reach and 10 kg payload capacity, meeting industrial throughput demands. Users in sectors like electronics, textile home furnishings, and metal processing benefit from its compact footprint and flexible degrees of freedom, ensuring seamless integration into existing automation cells with minimal modification. Its configuration supports streamlined workflows and operator workload reduction within controlled IP40 environments.
Technical Specifications Delivering Precision and Flexibility
Equipped with four articulated axes, the product emphasizes precision, exhibiting a repeatability tolerance of ±0.03 mm that supports high-accuracy tasks. The arm motion ranges, including a ±130° rotation on J1 at speeds up to 300°/s and a ±360° rotation on J4 reaching 1875°/s, illustrate a well-balanced design tailored for flexible and rapid movement. This 4 axis robot arm is sealed to an IP40 protection rating, suitable for light industrial conditions where dust and limited environmental exposure occur. The manipulator’s modular control system facilitates straightforward programming adjustments and system integration, representing a robust and predictable automation component.
Industry Applications Enhancing Manufacturing Efficiency
This 4 axis robot has demonstrated value in diverse manufacturing environments where consistent cycle times and operational reliability are crucial. It is effectively deployed in printing and packaging lines to ensure precise alignment and handling, while also supporting metal processing tasks that require repeatable tool positioning. Its payload and reach parameters accommodate electronics assembly and small-part material transfer, contributing to throughput improvements and reduced operator fatigue. Industrial robot manufacturers consider units like the product essential for automation cells emphasizing repeatability, reliability, and ease of maintenance, leading to measurable gains in industrial productivity.
Modular Design and System Integration Features
The product benefits from a simplified yet adaptable structural framework developed by a specialized axis robot manufacturer. The four-axis configuration optimizes mechanical complexity with flexibility, allowing integration within various cell configurations without extensive redesign. Its compact arm length of 800 mm creates a minimal footprint that supports installation in space-constrained production lines. The IP40 rating confirms suitability for moderately controlled factory environments, reducing failure risk. Modular electrical and communication interfaces facilitate compatibility with common industrial controllers, ensuring that the 4 axis robot arm can be integrated with established automation systems efficiently and reliably.
Performance Reliability and Operational User Advantages
With its precise repeatability of ±0.03 mm and robust payload capacity of 10 kg, this 4 axis robot ensures consistent cycle performance across demanding industrial tasks. Speed parameters such as the 473.5°/s motion on J2 and 1134 mm/s linear speed on J3 allow for rapid task execution without sacrificing accuracy. Operators benefit from simplified control schemes and flexible programming options, minimizing downtime during commissioning and reconfiguration. The robot’s reliability reduces maintenance frequency, thereby optimizing uptime and return on investment. The manipulability provided by multiple degrees of freedom enhances adaptability to varying production tasks, delivering operational value to manufacturing engineers and process integrators.
Precision Role in Printing and Packaging Automation
In the printing and packaging sector, the product 4 axis robot arm plays a critical role in automating delicate pick-and-place operations that demand accuracy and repeatability. Its 800 mm reach adequately covers typical workstations, while the 10 kg payload supports a wide range of product weights encountered in packaging lines. The IP40 protection ensures durability in mildly dusty factory environments. Integration with vision systems and line controllers is streamlined by its modular design, enabling synchronization with conveyor speeds and quality assurance processes. This facilitates stable throughput rates, consistent product presentation, and reduced manual intervention in repetitive handling tasks.
Metal Processing and Component Handling Applications
Within metal processing and assembly environments, this 4 axis robot provides precise positional control during tool alignment and part transfer. The compact footprint and flexible articulation accommodate confined spaces often found on machine shop floors. With rapid joint speeds and ±0.03 mm repeatability, it enables accurate handling of components sensitive to alignment errors. The unit supports integration with CNC machines and robotic cells by offering reliable feedback signals and interfacing options tailored by the axis robot manufacturer. This enhances workflow efficiency while maintaining compliance with industrial safety and operational standards, reducing cycle variance and boosting overall process automation.
What industries is the product four-axis robot suitable for?
Our product robot is designed for various sectors including printing and packaging, metal processing, textile home furnishings, and electronic equipment handling. Its precise motion, payload capacity, and flexible degrees of freedom make it ideal for moderate production tasks requiring repeatable, consistent operations.
Can I customize the product four-axis robot arm to fit specific applications?
While customization details for the product are not specified on the product page, we encourage you to contact us directly. As experienced industrial robot manufacturers, we review special requirements case-by-case to provide tailored solutions fitting your automation needs.
How do you ensure the reliability of your four-axis robot systems during long-term operation?
We design the product with a modular structure and robust IP40 protection suitable for light industrial environments. Our commitment to quality manufacturing and rigorous R&D processes ensures dependable performance and consistent repeatability of ±0.03 mm over extended production cycles.
What support is available for integrating your 4 axis robot into existing production lines?
We provide detailed technical guidance and support to facilitate seamless installation and integration of our 4 axis robot products. Our control systems are user-friendly, enabling efficient coordination of motion and easy adaptation within small to mid-scale automated cells to optimize workflow.
